Retaining rings commonly used with WALSH Race Craft products

It is recommended to replace the retaining ring every time you replace a ball joint

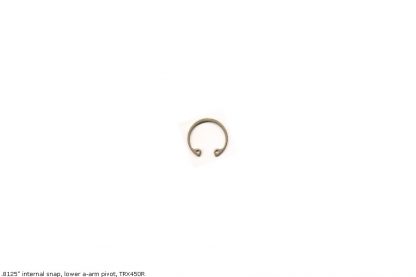

.8125” Internal snap, TRX450R lower a-arm pivot, 8 pieces used with 1 set of a-arms

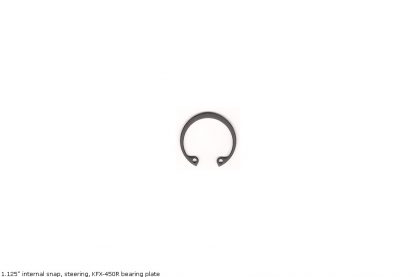

1.125” Internal snap, KFX-450R steering bearing plate, 1 piece used with 1 plate

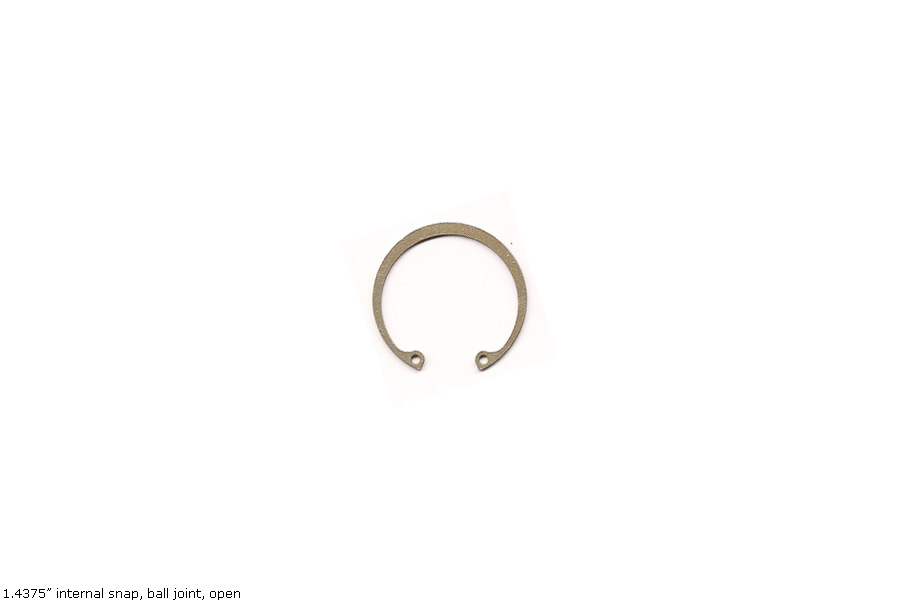

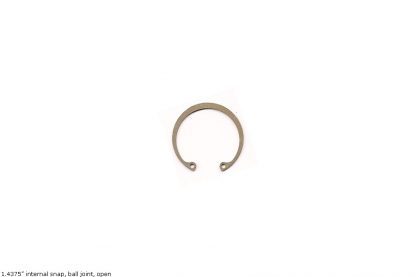

1.4375” Internal snap, open ball joint, 1 piece used with 1 ball joint

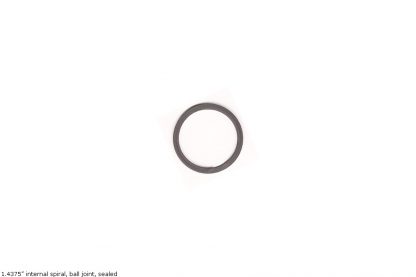

1.4375” Internal spiral, sealed ball joint, 1 piece used with 1 ball joint

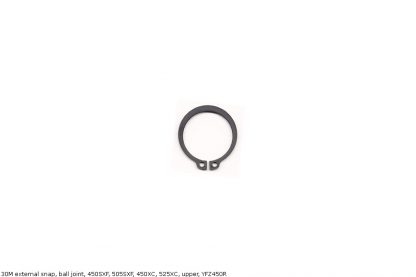

30M External snap, 450SXF, 505SXF, 450XC, 525XC upper, YFZ450R, 1 piece used with 1 ball joint

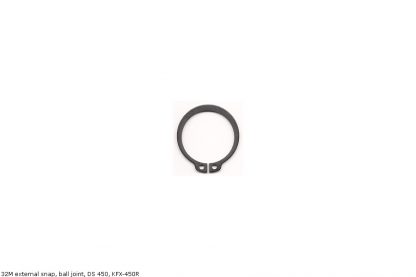

32M External snap, DS 450, KFX-450R, 1 piece used with 1 ball joint

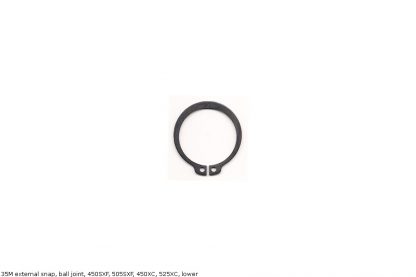

35M External snap, 450SXF, 505SXF, 450XC, 525XC lower, 1 piece used with 1 ball joint
